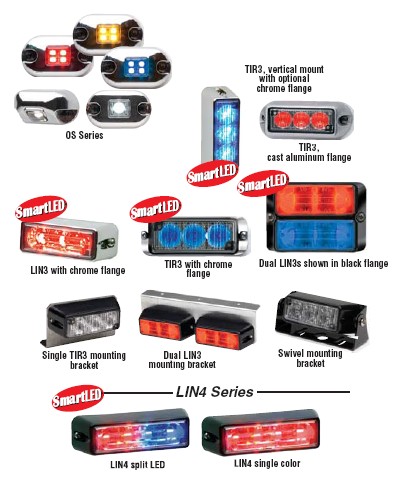

TIR3 / LIN3 Super-LED Series

Super-LED surface mount modules are effective for

a variety of applications and include black flange.

Low current, vibration and moisture resistant. Has

25 Scan-Lock flash patterns with Phase 1 and

Phase 2 for alternating/simultaneous flashing, for

up to eight lightheads which include steady-burn

and synchronize wire. Options include: chrome

plated and cast aluminum flange for single lighthead,

black or chrome plated flanges for dual

lightheads, single or dual mounting brackets and

single lighthead swivel bracket.

TIR3: Directional TIR lighting, horizontal and

vertical mount. LIN3: Linear-LED wide angle lighting, horizontal

mount.Size: 1-1/8? (28mm) H x 1-1/4? (32mm) D x

3-1/2? (89mm) L.

LIN4 Super-LED Series

Linear with split side-by-side single color or dual

color modules. 20 Scan-Lock flash patterns plus

steady-burn. Horizontal mount. Each side (2x2)

can flash alternately or simultaneously. Same

mounting options as TIR3/LIN3.

Size: 1-1/4? (32mm) H x 1-1/4? (32mm) D x

4-3/4? (121mm) L.

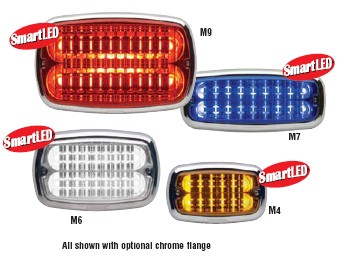

M Series Super-LED Surface Mount Lightheads

M9: 6-1/2? (165mm) H x 1-3/8? (35mm) D x 10-3/8? (263mm) L.

M7: 3-3/8? (86mm) H x 1-3/8? (35mm) D x 7-5/8? (194mm) L.

M6: 4-5/16? (109mm) H x 1-3/8? (35mm) D x 6-3/4? (170mm) L.

M4: 3-3/8? (86mm) H x x 1-3/8? (35mm) D 5-1/2? (138mm) L.

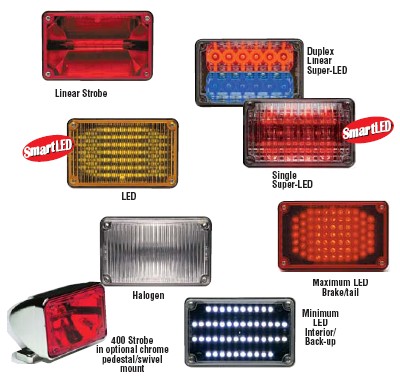

400 Series

Compact size, linear strobe,snap-in halogen, surface mount LED, LED back-up/

interior, amber turn signalor maximum intensity brake/tail/turn. Single or

dual level Super-LED. Strobe and halogen require power supply or flasher,

purchased separately. All 5 safety colors. Optional chrome plated

flange, black flange or swivel pedestal mount. Universal housing for fender,

grille, side hood and under headlight panel available for specific vehicles.

Size: 3-1/16? (77mm) H x 4-15/16? (124mm) L.

500 Series

Linear strobe, snap-in halogen,incandescent brake/tail, surface

mount LED, LED back-up, brake/ tail, scenelights, compartment

and clearance lights, LIN6 and TIR6 Super-LED. Available in

split LED or solid colors. Strobe and halogen require power supply

or flasher, purchased separately. LIN6 and TIR6 have 5 Scan- Lock

flash patterns. Optional chrome plated or black flange; rubber grommet; pedestal/

swivel mount; or round bar mounts in 1? and 1-1/4? versions. Universal Housing for

fender, grille and side hood availablefor specific vehicles.

Size: (lens)1-5/8? (41mm) H x 5? (127mm) L.

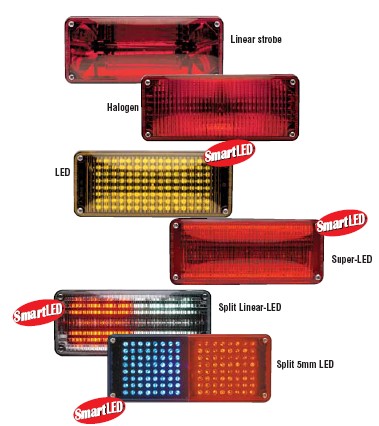

700 Series

Mid-size lighthead in linear strobe, relampable snap-in

halogen, surface mount LED and Linear-LED, split Linear-

LED, halogen and Super-LED scenelights, min & max LED

back-up/interior light, LED chevron arrow and amber

halogen turn arrow, and min & max brake/tail/turn.

Warning lights in all five safety colors. Optional chrome

or black flange for surface mount, or vehicle fender, grille

or side hood mounting.Size: 3-1/16? (78mm) H x

1-3/4? (44mm) D x 7-1/4?(184mm) L.

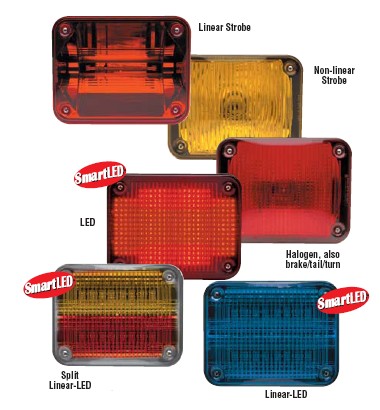

900 Series

Largest size of lighthead series. Linear strobe, strobe, halogen,

surface mount LED and Linear-LED, split Linear-LED. Min & Max LED brake/

tail/turn, LED and incandescent turn arrows, halogen and LED back-up/interior

lights and halogen scenelights. Warning lights in all five safety colors.

Optional chrome plated or black flange Size: 7-1/8? (181mm) H x 1-7/8?(48mm)

Recess x 9-1/8? (232mm) L.
