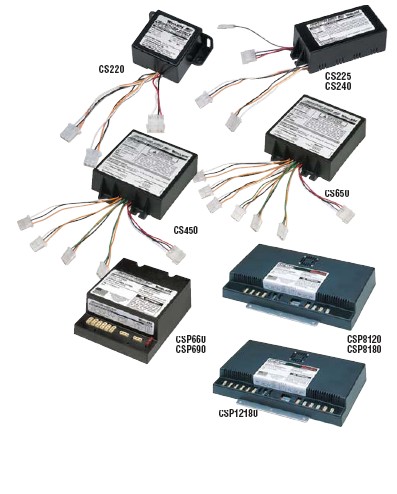

CS220

20 watt output, two outlet, 12/24 VDC.

Size: 1-1/2? (38mm) H x 3? (76mm) W x

4-3/16? (106mm) D. Weight: 1.5 lbs., (.56kg)

CS225/CS225D

25 watt output, two outlet, 12/24 VDC.

CS240/CS240D

40 watt output, two outlets, 12/24 VDC.

Size: 1-3/4" (38mm) H x 3" (76mm) W x

6-3/4" (171mm) D. Weight: 1.5 lbs., (.56kg)

CS450

50 watt output, four outlets, 12/24 VDC.

CS650

50 watt output, six outlets, 12/24 VDC.

Size: 1-3/4? (44mm) H x 5-1/2? (140mm) W

x 6-1/2? (165mm) D. Weight: 1.5 lbs., (.56kg)

CSP660

60 watt output, six outlets, 12/24 VDC.

Outlet Control: 2x4.

CSP690

90 watt output, six outlets, 12 VDC. Outlet

Control: 2x4. Size: 2-5/8" (67mm) H

x 11-5/16" (287mm) W x 8" (203mm) D.

Weight: 2 lbs., (.75kg)

CSP8120

120 watt output, eight outlets, 12 VDC.

Outlet Control: 2x2 2x2.

CSP8180

180 watt output, eight outlets, 12 VDC. Outlet

Control: 2x2 2x2. Size: 1-7/8" (48mm) H x

12-3/8" (312mm) W x 8-5/8" (219mm) D.

Weight: 3.75 lbs., (1.4kg

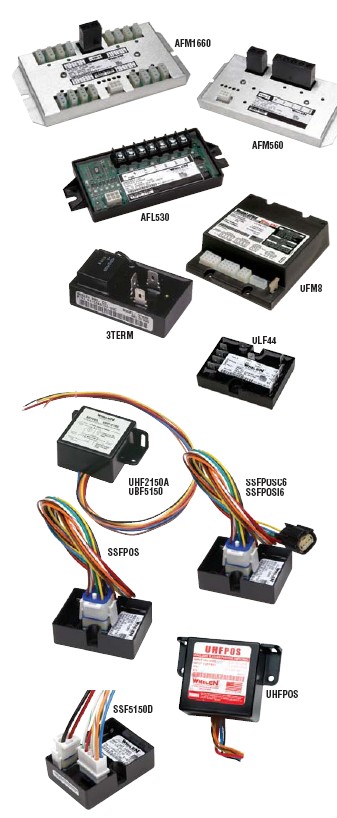

AFM1660

Two wire design, 16 outlet halogen/LED

flasher; 65 watts output; Scan-Lock?

multi-flash patterns. Interior use only,

KKK-E certified. Size: 5/8? (15mm) H

(without connectors) x 7-1/4? (184mm) W

x 3-3/4? (95mm) D.

AFM560

One wire design, 5 outlet halogen/LED chassis

ground flasher; 650/325/65/65 watt output;

Scan-Lock multi-flash patterns. Interior

use only, KKK-E certified.

Size: 5/8? (15mm) H (without connectors) x

7-1/4? (184mm) W x 3-3/4? (95mm) D.

AFL530

Five post ring terminal block, LED flasher only,

encapsulated 325/162.5/65/65 watt output

with Scan-Lock multi-flash patterns.

KKK-E certified.

Size: 5/8? (15mm) H (without connectors) x

6-1/2? (165mm) W x 2-3/4? (70mm) D.

SSFPOS

100% solid state, 2 outlet, 160 watts per outlet,

7 flash patterns, for positive switching headlights.

SSFPOSC6

Same as SSFPOS, except includes mating plug for

2006-08 Ford Crown Vic Interceptor police package.

SSFPOSI6

Same as SSFPOS, except includes mating plug for 2006-08

Chevy Impala and 2007-08 Chevy Tahoe police package.

SSF5150D

Solid-state positive switching taillight flasher, 5 flash patterns,

2006-08 Ford Crown Vic compatible.

ULF44

Four outlet, four channel LED flasher, with

more than 60 Scan-Lock flash patterns

allowing for alternate or simultaneous flashing

of lightheads. Encapsulated for water

resistance and rugged performance.

Size: 1-5/8" (41mm) H x 2" (50mm) W x 2-3/4"

(70mm) L.

3TERM

3-terminal alternating or simultaneous flasher

(two lamps). 180 watts per outlet. Size:

5/8? (16mm) H x 2-1/2? (64mm) W x 1-1/2?

(38mm) D.
